उत्पाद विवरण:
|
| कार्य तापमान: | -15°C ~ 50°C | मूल्य अवधि: | CIF CFR FOB EX-WORK |
|---|---|---|---|
| नमूना: | नि: शुल्क नमूना | लंबाई: | विभिन्न लंबाई में उपलब्ध (उदाहरण के लिए, 1 मी, 2 मी, 3 मी 6 मी) |

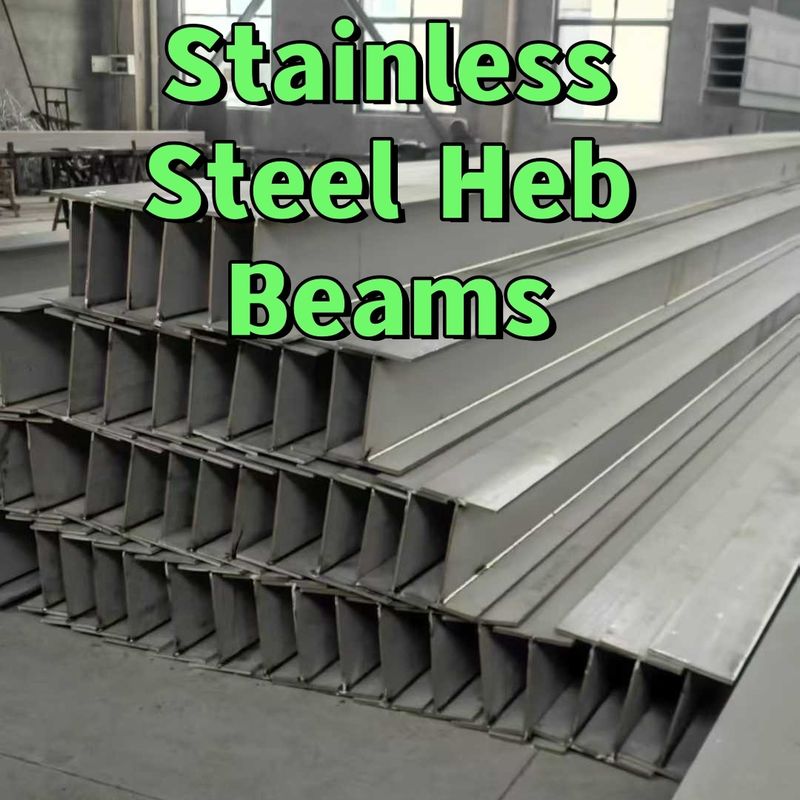

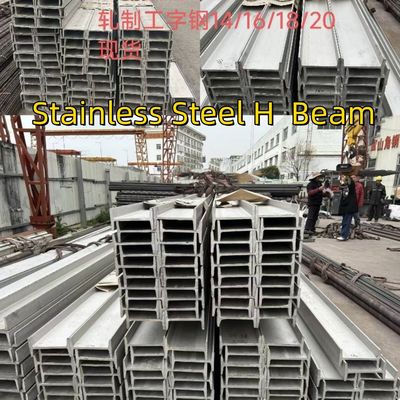

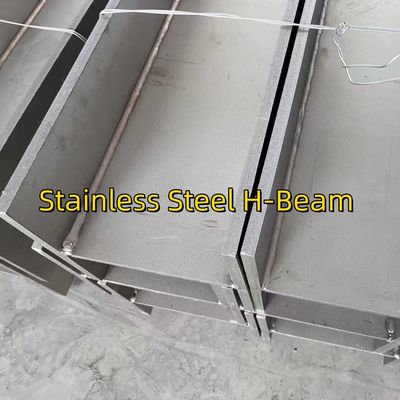

| उत्पाद: | स्टेनलेस स्टील हेब बीम्सबार | सतही समापन: | साटन या दर्पण |
| सामग्री: | स्टेनलेस स्टील | आकार: | स्वनिर्धारित |
| श्रेणी: | 304 /316 /201 |
|
Product Name
|
H beam
|
||
|
MOQ
|
1 Ton
|
||
|
Material
|
304,316,316L,410,430,201,etc
|
||
|
Surface treatment
|
Bare/Shot Blasted and Spray Paint or as required.
|
||
|
Web Thickness
|
5-16mm
|
||
|
Web Width
|
5-300mm
|
||
|
Flange Thickness
|
4.5-23mm
|
||
|
Flange Width
|
50-400mm
|
||
|
Standard
|
AiSi, ASTM, DIN, EN, GB, JIS Etc
|
||
|
Technique
|
Hot Rolled
|
||
|
Packing
|
Bundle, or with all kinds of colors PVC or as your requirements
|
||
|
Payment Terms
|
T/T or L/C
|
||
|
Product Application
|
Used in home appliances construction, machinery manufacturing, container manufacturing, shipbuilding, bridges, etc.
|
||
|
Certificates
|
ISO9001-2008,SGS.BV
|
||
|
Delivery Time
|
Usually within 10-15 days after receipt of advance payment
|
||
The application range of H type steel:
1.beam and column members in industrial and civil building steel structures.
2. steel structure bearing support for industrial structures;
3. steel pile and supporting structure for underground engineering;
4. the structure of industrial equipment such as petrochemical and electric power;
5. long-span steel bridge components;
6. frame structure of shipbuilding and mechanical manufacturing;
7. train, car, tractor beam bracket;
8. port conveyor belt, expressway stalls support.
The technical rationality of rolling H type steel:
The use of H steel in industrial and civil buildings not only saves labor force, reduces cost, but also reduces the amount of steel used. For example, the steel structure of the workshop can be reduced by 15%-20% compared with that of hot rolled I-steel and hot rolled wide flange H steel.
Specification of H-BEAMS
Quality: 304 316L
Size and Tolerance: JIS G3192, KS D3502
| Nominal Size (mm) |
HXB (mm) |
T1 (mm) |
T2 (mm) |
Unit Weight (kg/m) |
Available Length |
| 100*100 | 100*100 | 6 | 8 | 16.9 | 6/10/12m |
| 120*120 | 125*125 | 6.5 | 9 | 23.6 | 6/10/12m |
| 150*75 | 150*75 | 5 | 7 | 14 | 6/10/12m |
| 150*100 | 148*100 | 6 | 9 | 20.7 | 6/10/12m |
| 150*150 | 150*150 | 7 | 10 | 31.1 | 6/10/12m |
| 175*90 | 175*90 | 5 | 8 | 18 | 6/10/12m |
| 200*100 | 198*99 | 4.5 | 7 | 17.8 | 6/10/12m |
| 200*100 | 5.5 | 8 | 20.9 | 6/10/12m | |
| 175*175 | 175*175 | 7.5 | 11 | 40.4 | 6-16m |
| 194*150 | 194*150 | 6 | 9 | 29.9 | 6-16m |
| 200*200 | 200*200 | 8 | 12 | 49.9 | 6-16m |
| 200*204 | 12 | 12 | 56.2 | 6-16m | |
| 250*125 | 248*124 | 5 | 8 | 25.1 | 6-16m |
| 250*125 | 6 | 9 | 29 | 6-16m | |
| 250*175 | 244*175 | 7 | 11 | 43.6 | 6-16m |
| 300*150 | 298*149 | 5.5 | 8 | 32 | 6-16m |
| 300*150 | 6.5 | 9 | 36.7 | 6-16m | |
| 300*200 | 294*200 | 8 | 12 | 55.8 | 6-16m |
| 298*201 | 9 | 14 | 65.4 | 6-16m | |
| 350*175 | 346*174 | 6 | 9 | 41.2 | 6-16m |
| 350*175 | 7 | 11 | 49.4 | 6-16m | |
| 400*200 | 396*199 | 7 | 11 | 56.1 | 6-16m |
| 400*200 | 8 | 13 | 65.4 | 6-16m | |
| 250*250 | 250*250 | 9 | 14 | 71.8 | 6-16m |
| 250*255 | 14 | 14 | 81.6 | 6-16m | |
| 300*300 | 300*300 | 10 | 15 | 93 | 6-16m |
| 294*302 | 12 | 12 | 83.4 | 6-16m | |
| 300*305 | 15 | 15 | 105 | 6-16m |
| Nominal Size (mm) | HXB (mm) | t1 (mm) | t2 (mm) | Unit Weight (kg/m) | Available length |
| 350×350 | 344×348 | 10 | 16 | 113 | 6-16m |
| 350×350 | 12 | 19 | 135 | 6-16m | |
| 400×400 | 388×402 | 15 | 15 | 140 | 6-16m |
| 394×398 | 11 | 18 | 147 | 6-16m | |
| 400×400 | 13 | 21 | 172 | 6-16m | |
| 400×408 | 21 | 21 | 197 | 6-16m | |
| 414×405 | 18 | 28 | 232 | 6-16m | |
| 428×407 | 20 | 35 | 283 | 6-16m | |
| 350×250 | 340×250 | 9 | 14 | 78.1 | 6-16m |
| 400×300 | 390×300 | 10 | 16 | 105 | 6-16m |
| 450×300 | 440×300 | 11 | 18 | 121 | 6-16m |
| 450×200 | 446×199 | 8 | 12 | 65.1 | 6-16m |
| 450×200 | 9 | 14 | 74.9 | 6-16m | |
| 500×300 | 482×300 | 11 | 15 | 111 | 6-16m |
| 488×300 | 11 | 18 | 125 | 6-16m | |
| 500×200 | 496×199 | 9 | 14 | 77.9 | 6-16m |
| 500×200 | 10 | 16 | 88.2 | 6-16m | |
| 506×201 | 11 | 19 | 102 | 6-16m | |
| 600×200 | 600×200 | 11 | 17 | 103 | 6-16m |
| 596×199 | 10 | 15 | 92.4 | 6-16m | |
| 606×201 | 12 | 20 | 118 | 6-16m | |
| 600×300 | 582×300 | 12 | 17 | 133 | 6-16m |
| 588×300 | 12 | 20 | 147 | 6-16m | |
| 594×302 | 14 | 23 | 170 | 6-16m | |
| 700×300 | 692×300 | 13 | 20 | 163 | 6-16m |
| 700×300 | 13 | 24 | 182 | 6-16m | |
| 800×300 | 800×300 | 14 | 26 | 207 | 6-16m |
| 808×302 | 16 | 30 | 241 | 6-16m | |
| 900×300 | 890×299 | 15 | 23 | 210 | 6-16m |
| 900×300 | 16 | 28 | 240 | 6-16m | |
| 912×302 | 18 | 34 | 283 | 6-16m |
