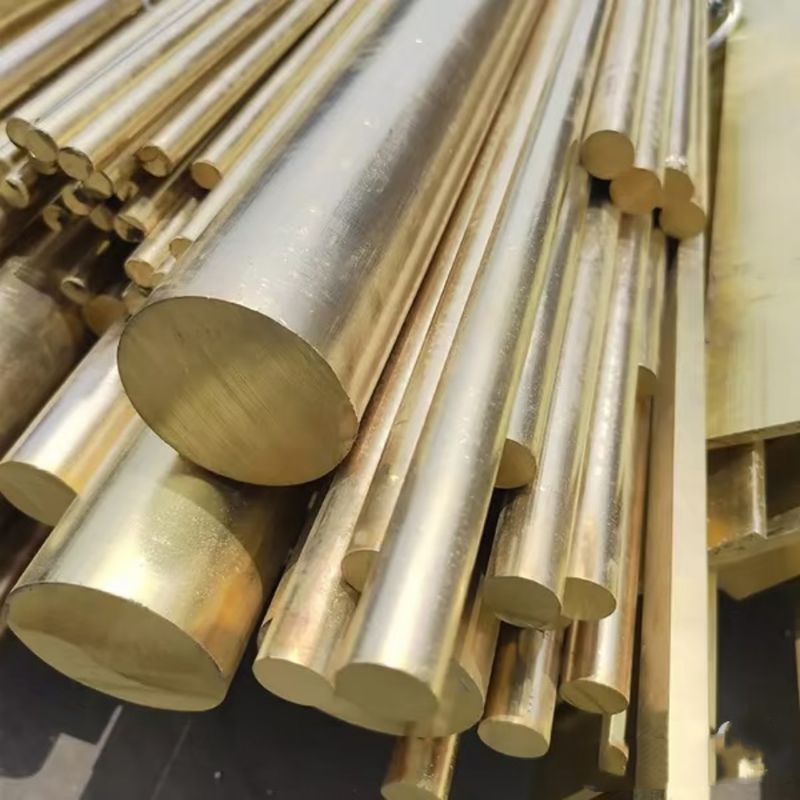

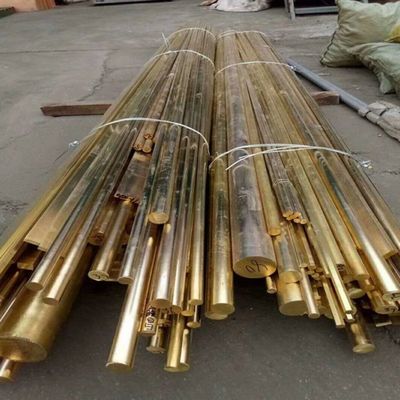

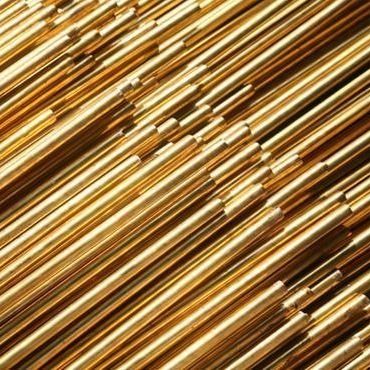

उत्पाद विवरण:
|
| प्रकार: | गोल बार/हेक्स बार | लंबाई: | आवश्यकता अनुसार |
|---|---|---|---|
| व्यास से बाहर: | 10-390 मिमी | सामग्री: | पीतल |
| प्रोडक्ट का नाम: | फाउंड्री कास्टिंग | धातु प्रकार: | ताँबा |
| सतह का उपचार: | चमकाने |
Read the technical data sheet of brass CuZn37
| Hot deformability | Good |
| Cold deformability | Excellent |
| Cold reduction before annealing | 90% max |
Machinability (Basic reference: brass from bar turning CuZn39Pb2 =100) | 25 |
| Soft soldering | Excellent |
| Hard soldering | Excellent |
| Arc welding in a gaseous atmosphere | Good |
| Arc welding with coated wire electrode | Not recommended |
| Electric resistance welding : | |
| Per point | Not recommended |
| Placed end to end | Good |
| Corrosion resistance : | |
| Nitric acid | Bad |
| Sulphuric and acetic acids | Good |
| Sea water | Good |
| 60% hydrochloric and sulphuric acids | Medium |
| Marine Atmosphere | Good |
| Chemical composition in % | Physical characteristics (at 20°C) | ||
| Zn | Remains | Density (kg/dm3) | 8.44 |
| Cu | 63 | Electrical conductivity (%IACS) | 26 |
| Pb | 0.05 max | Electrical resistivity (MS/m) | 6.6 |
| Sn | 0.2 max | Thermal conductivity (W/m.K) | 120 |
| Al | 0.02 max | Modulus of elasticity (Kn/mm²) | 110 |
| Fe | 0.05 max | Coef. of thermal expansion (10-6/K) | 20.2 |
| Ni | 0.3 max | Melting temperature (°C) | 910 - 950 |
| Total other impurities | 0.1 max | Shear modulus (kN/mm²) | 40 |
| Item | Brass Rod/bar Hpb58-3 |
| Composition | as below table |
| Standard | ASTM,AISI,BS,JIS,GB,etc |
| Type | Continuous or Extruded |
| OEM acceptance | Yes, customized composition and dimension is accepted |
| Shape | Solid or hollow Round, flat, square, hexagonal, rectangular,etc |
| Dimension | Round bar: Diameter for continuous casted rod: 7-150 mm Diameter for extruded rod: 3-70 mm Length: customized Dimension for rods of Other shapes can be customized. |
| Finish | Mill, polished, bright or as requested |
| Process | Horizonal continuous casting, Extrusion |
| Inspection Equipements | Chemical composition analysis: Spectrometer Mechenic property test: Hardness, tensile strength, Elongation,Straightness |
| Application | 1). Charging auto parts 2) Connectors 3). Marine pumps 4). Bushing 5).Electrical conductors 6) Cummunication 7) Couplings, plumbing parts or sanitary ware parts,etc. 8). Military |
| Advantages | 1) Good mechanical properties, 2) Strong corrosion resistance, 3) Strict dimension control, 4) High intensity, 5) Great machining performance, 6) Hot Forging performance |
| MOQ | 500KG-3000KG |
| Sampe requested | Yes |
| Price Term | Ex-works, FOB,CIF, etc |
| Chemical Composition | |||||||
| Alloy Grade | Cu | Pb | Al | Fe(max) | Sn | Zn | Impurity Total |
| HPb63-3 | 62.0~65.0 | 2.4~3.0 | - | 0.1 | - | REM | 0.75 |
| HPb63-0.1 | 61.5~63.5 | 0.05~0.3 | - | 0.15 | - | REM | 0.5 |
| HPb62-2 | 60.0~63.0 | 1.5~2.5 | - | 0.15 | - | REM | 0.65 |
| HPb60-3 | 58.0~61.0 | 2.5~3.5 | - | 0.3 | 0.3 | REM | 0.8 |
| Hpb59-1 | 57.0~60.0 | 0.8~1.9 | - | 0.5 | - | REM | 1.0 |
| Hpb58-3 | 57.0~59.0 | 2.5~3.5 | - | 0.5 | 0.5 | REM | 1.0 |
| Hpb57-4 | 56.0~58.0 | 3.5~4.5 | - | 0.5 | 0.5 | REM | 1.2 |
| C3601 | 59.0~63.0 | 1.8~3.7 | - | 0.3 | Fe+Sn:0.5 | REM | - |
| C3602 | 59.0~63.0 | 1.8~3.7 | - | 0.5 | Fe+Sn:1.0 | REM | - |
| C3603 | 57.0~61.0 | 1.8~3.7 | - | 0.35 | Fe+Sn:0.6 | REM | - |
| C3604 | 57.0~61.0 | 1.8~3.7 | - | 0.5 | Fe+Sn:1.0 | REM | - |
| C3605 | 56.0~60.0 | 3.5~4.5 | - | 0.5 | Fe+Sn:1.0 | REM | - |
| CW602N | 61.0~63.0 | 1.7~2.8 | 0.05 | 0.1 | 0.1 | REM | Ni 0.3 |
| others total 0.2 | |||||||
| CW614N | 57.0~59.0 | 2.5~3.5 | 0.05 | 0.3 | 0.3 | REM | Ni 0.3 |
| others total 0.2 | |||||||
| CW617N | 57.0~59.0 | 1.6~2.5 | 0.05 | 0.3 | 0.3 | REM | Ni 0.3 |
| others total 0.2 | |||||||
| C36000 | 60.0~63.0 | 2.5~3.0 | - | 0.35 | - | REM | - |
Q1: Are you a manufacturer or a trading company?
A: We are both a trading company and a manufacturer.We have own factory, which is located in Jiangsu,CHINA. We have more than 10 years experience in sales of steel products. We promise that we are the very supplier that you are looking for.
Q2:Can I visit your factory ?
A: Of course.We warmly welcome you to visit our factory.
Q3: Do you have quality control? How can you give warranty of your products?
A: Yes, we have gained certification of GB/T19001:2016/ ISO9001:2015. We are the verified supplier by SGS on the platform of MIC. We extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.
